메인보드 센서 오류 VBAT 범위
엔지니어-FIXER
2013. 3. 3. 02:30

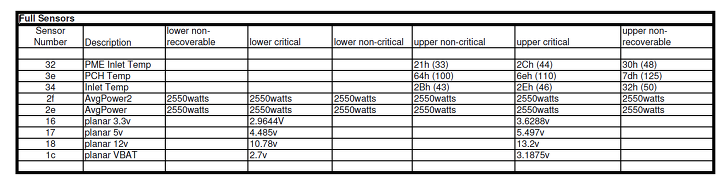

Sensor
Number Description
lower nonrecoverable
lower critical lower non-critical upper non-critical upper critical
upper nonrecoverable
32 PME Inlet Temp 21h (33) 2Ch (44) 30h (48)
3e PCH Temp 64h (100) 6eh (110) 7dh (125)
34 Inlet Temp 2Bh (43) 2Eh (46) 32h (50)
2f AvgPower2 2550watts 2550watts 2550watts 2550watts 2550watts 2550watts
2e AvgPower 2550watts 2550watts 2550watts 2550watts 2550watts 2550watts
16 planar 3.3v 2.9644V 3.6288v
17 planar 5v 4.485v 5.497v
18 planar 12v 10.78v 13.2v
1c planar VBAT 2.7v 3.1875v
