DS3400 펌웨어 업데이트 6.70.22 -> 7.35.xx최신업데이트
이걸로 업데이트해야합니다
내부에서 메니저 띄워서 하면안됩니다.
그리고 .22에서 바로 안되면 .69버전으로 업데이트후 7.대로 넘어가야합니다.
I got a solution from IBM Frontend support.
After the:
"DS3400 SUPPORT_SERVICES DownloadAndActivate
activation failed".
Go in to the Script editor and run following script:
"activate storageSubsystem firmware;"
It worked for me.
위 스크립트 방법도 있다는데 잘될지는 무리수
Still some trick to lern about IBM DS3400 upgrades.
When trying to upgrade from 6.70.22 i got the error about Mapping Database Corruption.
IBM told me that they had to create som scrips for doing this, and that the job would cost some money.
I finally found a solution.

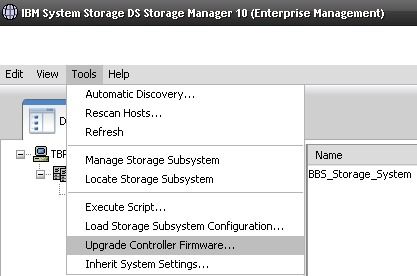

Instead of upgrading to 7.35.57 as planned, I use the Tools – Firmware upgrade, and upgrade to 6.70.69. This can be done online, without stopping any IO.
After that, you have to clear the Event Log for critical errors, Tools- Advanced Service Tools – Event Log.
Then it is possible to upgrade to latest firmware.
By the way. When upgrading to 7.35.xx firmware, this has to be done offline (without any IO). The firmware is now changing the code from 32bit to 64bit. Thats why.
This will not affect performance, but controllers can now address 2TB+ LUN.
이분도 69로 했다가 7점대로 올렸다고 하네요
펌웨어는 항상 신중하게
IBM DS3000 Storage Subsystem controller firmware/NVSRAM v06.70.69.00 - IBM System Storage
링크: https://www-947.ibm.com/support/entry/myportal/docdisplay?brandind=5000028&lndocid=MIGR-5075356
그냥 들어가면 없는데 검색하니 나오네요
Supported systems:
- IBM System Storage DS3200 (1726)
- IBM System Storage DS3300 (1726)
- IBM System Storage DS3400 (1726)
| 버전: | 06.70.69.00 | |
| 릴리스 날짜: | 2008-05-02 |
| 파일 링크 | 파일 크기 | 파일 설명 | ||
|---|---|---|---|---|
| ibm_fw_ds3k_06706900_anyos_anycpu.zip | 25,331,949 | IBM DS3000 Storage Subsystem Controller Firmware/NVSRAM | ||
| ibm_fw_ds3k_06706900_anyos_anycpu.txt | 23,281 | README for the IBM DS3000 Storage Subsystem Controller Firmware/NVSRAM | ||
| ibm_fw_ds3k_06706900_anyos_anycpu.chg | 4,105 | CHANGE HISTORY for the IBM DS3000 Storage Subsystem Controller Firmware/NVSRAM |
Severity: Suggested
Change history
Version 06.70.69.00 - 28 Apr 2008
This firmware version is required to support the IBM DS3000 System Storage DS3300 storage subsystems. The IBM DS3000 Storage Manager host software version 2.72.xx.xx is required to manage DS3000 storage subsystems with controller firmware version 06.70.69.00 installed.
