SFP transceiver FRU 확인 리스트

엔지니어-FIXER 2012. 8. 27. 10:06

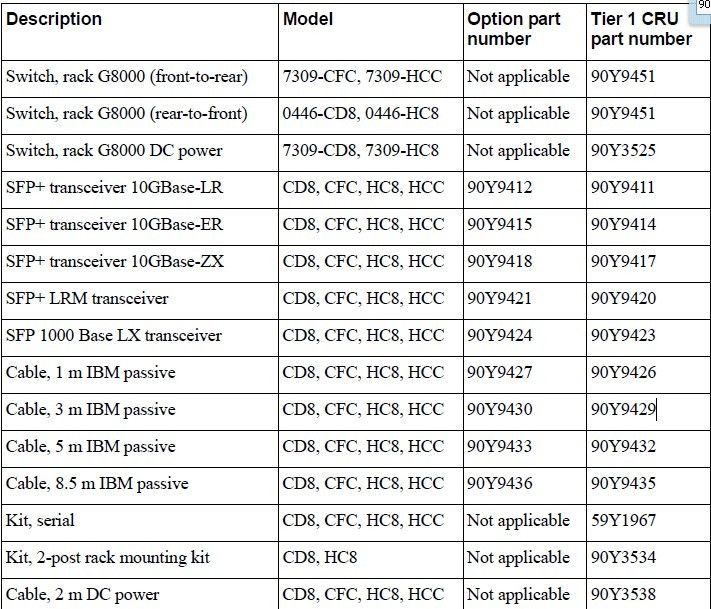

Description Model Option part
number
Tier 1 CRU
part number
Switch, rack G8000 (front-to-rear) 7309-CFC, 7309-HCC Not applicable 90Y9451
Switch, rack G8000 (rear-to-front) 0446-CD8, 0446-HC8 Not applicable 90Y9451
Switch, rack G8000 DC power 7309-CD8, 7309-HC8 Not applicable 90Y3525
SFP+ transceiver 10GBase-LR CD8, CFC, HC8, HCC 90Y9412 90Y9411
SFP+ transceiver 10GBase-ER CD8, CFC, HC8, HCC 90Y9415 90Y9414
SFP+ transceiver 10GBase-ZX CD8, CFC, HC8, HCC 90Y9418 90Y9417
SFP+ LRM transceiver CD8, CFC, HC8, HCC 90Y9421 90Y9420
SFP 1000 Base LX transceiver CD8, CFC, HC8, HCC 90Y9424 90Y9423
Cable, 1 m IBM passive CD8, CFC, HC8, HCC 90Y9427 90Y9426
Cable, 3 m IBM passive CD8, CFC, HC8, HCC 90Y9430 90Y9429
Cable, 5 m IBM passive CD8, CFC, HC8, HCC 90Y9433 90Y9432
Cable, 8.5 m IBM passive CD8, CFC, HC8, HCC 90Y9436 90Y9435
Kit, serial CD8, CFC, HC8, HCC Not applicable 59Y1967
Kit, 2-post rack mounting kit CD8, HC8 Not applicable 90Y3534
Cable, 2 m DC power CD8, CFC, HC8, HCC Not applicable 90Y3538
