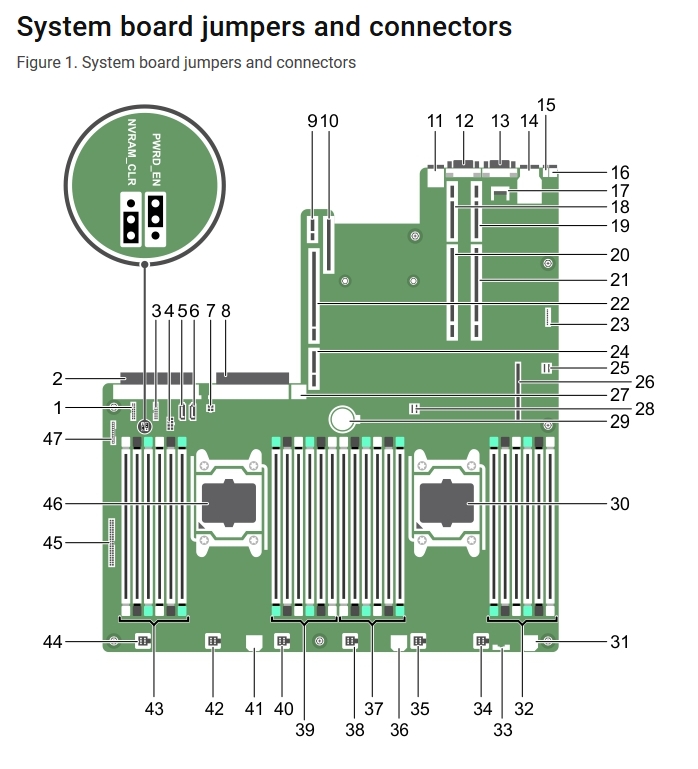

| 1 | J_BP_SIG1 | Backplane signal connector 1 |
| 2 | J_PS_2 | PSU 2 connector |
| 3 | J_BP_SIG0 | Backplane signal connector 0 |
| 4 | J_BP0 | Backplane power connector 0 |
| 5 | J_SATA_CD | Optical drive SATA connector |
| 6 | J_SATA_TBU | Tape backup unit SATA connector |
| 7 | J_TBU | Tape backup unit power connector |
| 8 | J_PS_1 | PSU 1 connector |
| 9 | J_IDSDM | Internal dual SD module connector |
| 10 | J_NDC | Network daughter card connector |
| 11 | J_USB | USB port |
| 12 | J_VIDEO_REAR | Video connector |
| 13 | J_COM1 | Serial connector |
| 14 | J_IDRAC_RJ45 | iDRAC8 connector |
| 15 | J_CYC | System identification connector |
| 16 | CYC_ID | System identification button |
| 17 | J_TPM_MODULE | Trusted Platform Module connector |
| 18 | J_RISER_2AX | Riser 3 connector |
| 19 | J_RISER_1AX | Riser 1 connector |
| 20 | J_RISER_2BX | Riser 2 connector |
| 21 | J_RISER_1BX | Riser 1 connector |
| 22 | J_RISER_3AX | Riser 3 connector |
| 23 | J_QS | Quick Sync bezel connector |
| 24 | J_RISER_3BX | Riser 3 connector |
| 25 | J_SATA_B | Internal SAS connector |
| 26 | J_STORAGE | Mini PERC connector |
| 27 | J_USB_INT | Internal USB port |
| 28 | J_SATA_A | Internal SAS connector |
| 29 | BAT | Battery connector |
| 30 | CPU 2 | Processor 2 socket |
| 31 | J_BP3 | Backplane power connector 3 |
| 32 | B10, B6, B2, B9, B5, B1 | Memory module sockets |
| 33 | J_BP_SIG2 | Backplane signal connector 2 |
| 34 | J_FAN2U_6 | Cooling fan connector |
| 35 | J_FAN2U_5 | Cooling fan connector |
| 36 | J_BP2 | Backplane power connector 2 |
| 37 | B3, B7, B11, B4, B8, B12 | Memory module sockets |
| 38 | J_FAN2U_4 | Cooling fan connector |
| 39 | A10, A6, A2, A9, A5, A1 | Memory module sockets |
| 40 | J_FAN2U_3 | Cooling fan connector |
| 41 | J_BP1 | Backplane power connector |
| 42 | J_FAN2U_2 | Cooling fan connector |
| 43 | A3, A7, A11, A4, A8, A12 | Memory module sockets |
| 44 | J_FAN2U_1 | Cooling fan connector |
| 45 | J_CTRL_PNL | Control panel signal connector |
| 46 | CPU 1 | Processor 1 socket |
| 47 | J_FP_USB | Front panel USB port |
보드 각 명칭입니다.
